FusingX PP-R Full Port Ball Valve | Socket Fusion Plastic Ball Valve | DN20–63
- group name
- PPR Valves
- Min Order
- 1 piece
- brand name
- FusingX
- model
- DN20–63
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 01 May 2026 11:36:30 GMT
Paramtents
Material PP-R (Polypropylene Random Copolymer)
Ball Material Brass / Chrome-plated Brass
Connection Type Socket fusion
Structure Full Port Ball Valve
Operation Type Manual (Lever Handle)
Size Range DN20–DN63
Working Temperature Up to 95°C
Applicable Standards • PP-R system: ISO 15874
Color Options Green / Orange
Packging & Delivery
-
Min Order1 piece
Briefing
Designed for flow control in PP-R piping systems, this full port ball valve ensures low flow resistance and smooth operation, suitable for water supply applications.
Detailed

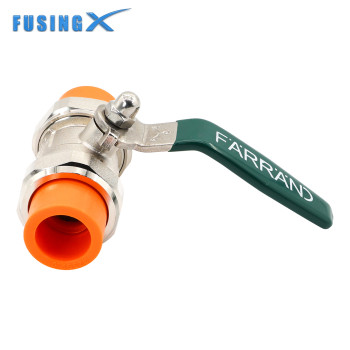

FusingX PP-R Full Port Ball Valve
(Socket fusion ends with full port ball control)
Overview
The PP-R full port ball valve is designed for flow control in PP-R piping systems.
It features socket fusion connections and a brass ball core, ensuring low flow resistance and smooth operation in water supply systems.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Ball Material: | Brass / Chrome-plated Brass |
| Connection Type: | Socket fusion |
| Structure: | Full Port Ball Valve |
| Operation Type: | Manual (Lever Handle) |
Applicable Standards: | • PP-R system: ISO 15874 |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) |
DN20 | 20 |
DN25 | 25 |
DN32 | 32 |
DN40 | 40 |
DN50 | 50 |
DN63 | 63 |
Key Features
Full Port Flow
Full port design reduces flow resistance and maintains consistent flow performance.
Fast Quarter-Turn Operation
Quarter-turn operation enables fast opening and closing with minimal effort.
Nickel-Plated Brass Ball
Nickel-plated brass ball provides smooth operation, reliable sealing, and enhanced corrosion resistance.
Socket Fusion Connection
Socket fusion ends ensure stable and leak-free connection with PP-R piping systems.
Details
Nickel-Plated Brass Ball
Nickel-plated brass ball ensures smooth sealing, low friction, and corrosion resistance.
Quarter-Turn Lever Handle
Quarter-turn lever allows fast and efficient on/off control.
Full Port Flow Path
Full port design provides unrestricted flow with minimal pressure loss.
Installation
· Heat the PP-R pipe and valve socket using a fusion welding machine
· Insert the pipe into the socket without rotation
· Allow sufficient cooling time
· Turn the lever to check smooth opening and closing
Applications
Widely used in PP-R piping systems for flow control in:
· Municipal water supply
· Residential plumbing systems
· Commercial piping systems
· Industrial water distribution
