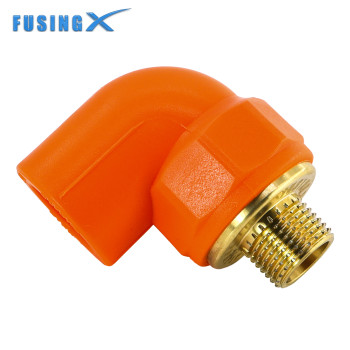

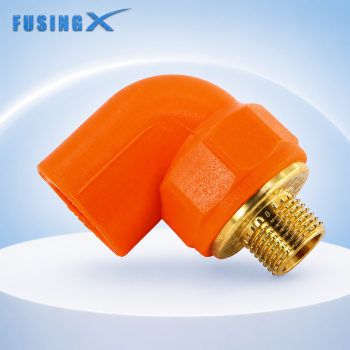

FusingX PPR Male Thread Elbow 90° | PPR x Brass Male Thread Fitting | DN20–32
- group name
- PPR Threaded Fittings
- Min Order
- 1 piece
- brand name
- FusingX
- model
- L20–L32 × 1/2"–1" (M)
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 01 May 2026 10:24:25 GMT
Paramtents
Product Type PPR Male Thread Elbow 90°
Angle 90°
Material PPR + Brass
Insert Type Brass / Nickel-Plated Brass
Connection Socket Fusion x Male Thread
Color Green / Orange
Application Water Supply Systems
Thread Standard BSP / NPT (Optional)
Working Temperature up to 95°C
Working Pressure PN16 / PN20
Packging & Delivery
-
Min Order1 piece
Briefing
Used to connect PPR pipe with metal threaded fittings at a 90° angle in water supply systems.
Detailed
FusingX PP-R Male Thread Elbow (90°)
(Socket fusion end with male threaded metal insert)
Overview
PP-R male thread elbow (90°) is designed for water supply systems, connecting PP-R pipes with threaded metal fittings.
It features a socket fusion end on one side and a male threaded connection with an integrated metal insert on the other.
Technical Information
| Material: | PP-R Body + Brass Insert |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket Fusion + Male Thread |
| Angle: | 90° |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
L20×1/2M | 20 | 1/2" |
L20×3/4M | 20 | 3/4" |
L25×1/2M | 25 | 1/2" |
L25×3/4M | 25 | 3/4" |
L32×1/2M | 32 | 1/2" |
L32×3/4M | 32 | 3/4" |
L32×1M | 32 | 1" |
Key Features
Threaded Connection
Precision-machined male thread for connection with female threaded fittings.
Socket Fusion End
Designed to match standard PP-R fusion dimensions.
Metal Insert Options
Available with brass or nickel-plated brass insert options.
Two Color Options
Available in green and orange body options.
Details
Thread
Precision-machined male thread ensures accurate connection with female threaded fittings.
Socket End
Socket end conforms to standard PP-R fusion dimensions for consistent jointing.
Body Structure
One-piece PP-R body with firmly embedded metal insert for stable and reliable connection.
Installation
· Installed by socket fusion welding on PP-R pipes.
· Male threaded end connects directly with standard metal fittings.
· Ensure proper alignment during installation to avoid stress on the metal insert.
