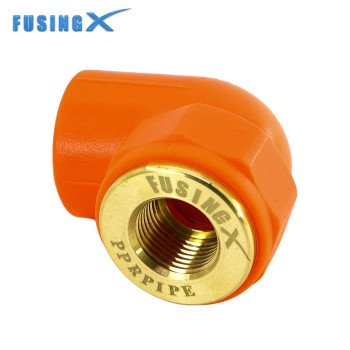

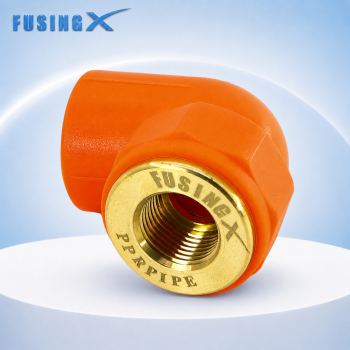

FusingX PPR Female Thread Elbow 90° | PPR x Brass Female Thread Fitting | DN20–32
- group name
- PPR Threaded Fittings
- Min Order
- 1 piece
- brand name
- FusingX
- model
- L20–L32 × 1/2"–1" (F)
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 01 May 2026 10:24:07 GMT
Paramtents
Product Type Female Thread Elbow
Angle 90°
Material PP-R
Insert Type Brass / Nickel-plated Brass
Connection Socket Fusion / Female Thread
Color Green / Orange
Application Water Supply Systems
Packging & Delivery
-
Min Order1 piece
Briefing
PP-R female thread elbow (90°) with brass insert, used for connecting PP-R pipes to male threaded fittings in hot and cold water systems.
Detailed
FusingX PP-R Female Thread Elbow (90°)
（Socket fusion end with female threaded metal insert）
Overview
PP-R female thread elbow (90°) is designed for water supply systems, connecting PP-R pipes with threaded metal fittings.
It features a socket fusion end on one side and a female threaded connection with an integrated metal insert on the other.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket fusion + Female thread |
| Angle: | 90° |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
L20×1/2F | 20 | 1/2" |
L20×3/4F | 20 | 3/4" |
L25×1/2F | 25 | 1/2" |
L25×3/4F | 25 | 3/4" |
L32×1/2F | 32 | 1/2" |
L32×3/4F | 32 | 3/4" |
L32×1F | 32 | 1" |
Key Features
Threaded Connection
Precision-machined female thread for connection with male threaded fittings.
Socket Fusion End
Designed to match standard PP-R fusion dimensions.
Metal Insert Options
Available with brass or nickel-plated brass insert options.
Two Color Options
Available in green and orange body options.
Details
Thread
Internal thread is machined inside the metal insert.
Socket End
Socket end follows standard PP-R dimensions for fusion.
Body Structure
Integrated PP-R body with smooth transition to the insert.
Installation
- Installed by socket fusion welding on PP-R pipes.
- Threaded side connects directly with standard metal fittings.
- Ensure proper alignment during installation to avoid stress on the insert.
