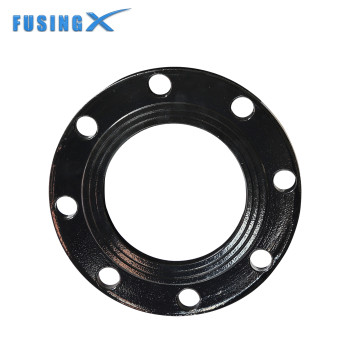

FusingX HDPE Flange Plate Butt Fusion Fitting | PE100 | DN63–DN1200 | PN16
- group name
- Butt Fusion Fittings
- Min Order
- 20 piece
- brand name
- FusingX
- model
- Flange Plate
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Wed, 18 Mar 2026 17:31:25 GMT
Paramtents
Color Black
Pressure level 1.6Mpa
Material PE100
Connecting method Butt fusion welding
Packging & Delivery
-
Min Order20 piece
Briefing
This HDPE flange backing ring is made from virgin PE100 material and is designed to work with HDPE stub ends for bolted flange connections. It features precise bolt hole positioning and uniform plate thickness, ensuring stable load distribution, reliable alignment, and long-term performance in pipeline systems.
Detailed

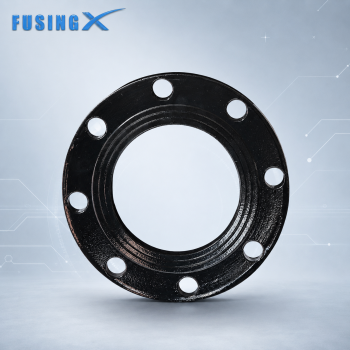

Flange Plate – Butt Fusion Fitting
FusingX Butt Fusion Flange Plate
Product Overview
Butt Fusion Flange Plate
· Material: PE100
· Pressure rating: PN16
· Size range: DN63–DN1200
· Connection method: Butt fusion
· Application: PE pipeline systems
Butt Fusion Structure & Welding Surfaces
· Flat and uniform fusion faces ensure consistent heat transfer
· Accurate Flange Plate geometry helps maintain alignment during fusion
· Stable wall thickness reduces welding deviation
Selection Notes
· Select size according to pipe outside diameter (DN63–DN1200)
· Confirm pressure class requirement (PN16)
· Ensure compatibility with butt fusion welding machines and parameters
FX Series – System View
FusingX FX Series – System View
FX series focuses on professional pipeline fusion systems.
· Electrofusion fittings
· Electrofusion control units
· Butt fusion machines
