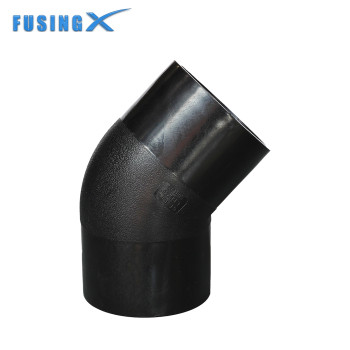

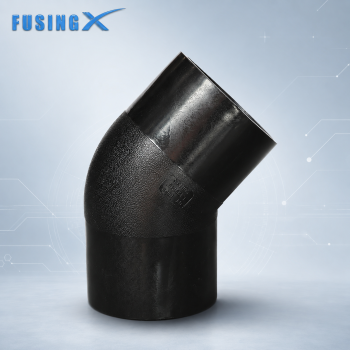

FusingX 45° Butt Fusion Elbow | PE100 | DN63–DN800 | PN16
- group name
- Butt Fusion Fittings
- Min Order
- 20 piece
- brand name
- FusingX
- model
- 45° Elbow
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Sat, 21 Mar 2026 08:45:45 GMT
Paramtents
Color Black
Pressure level 1.6Mpa
Material PE100
Connecting method Butt fusion welding
Packging & Delivery
-
Min Order20 piece
Briefing

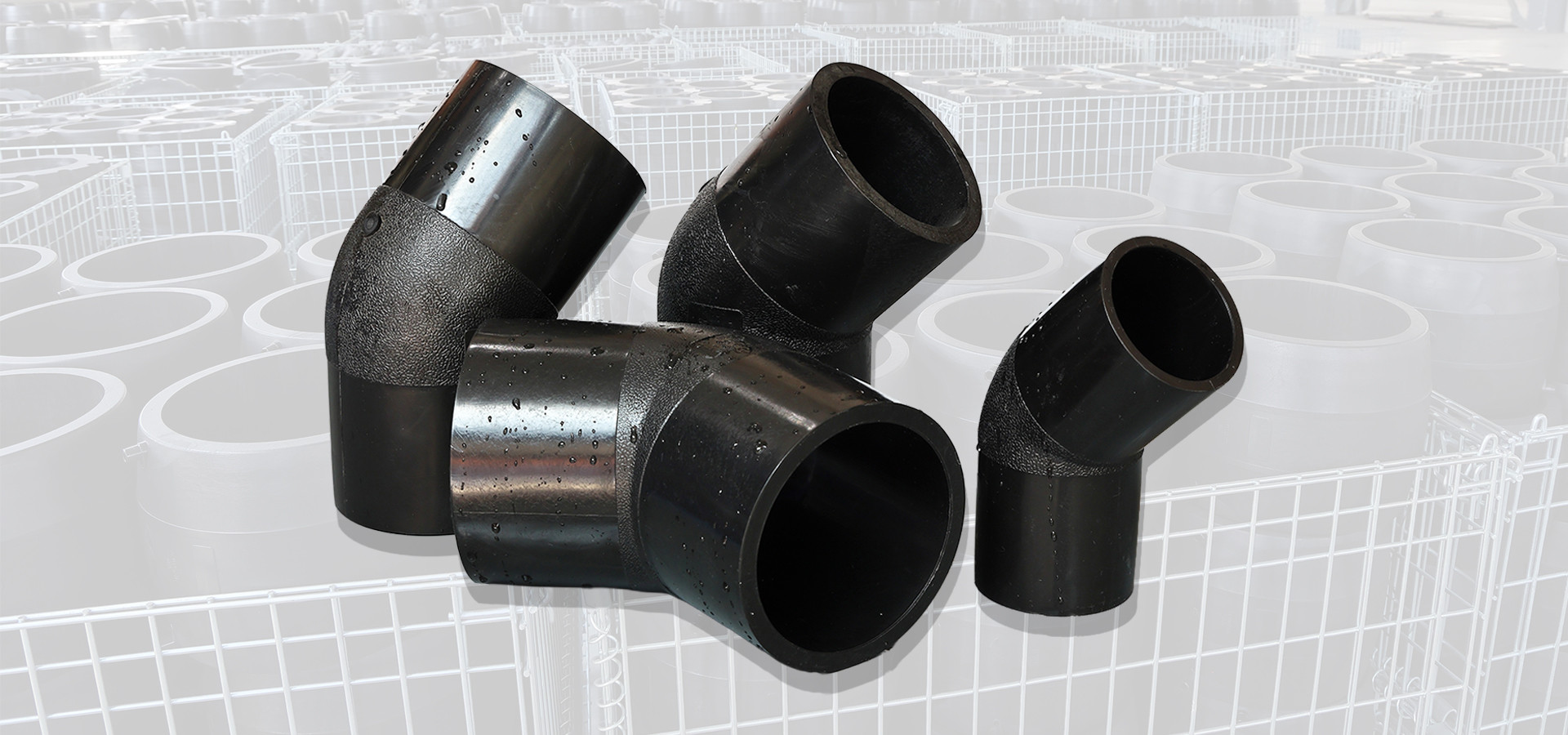

Welping hdpe pipe butt fusion fittings are made of PE 100 high-density polyethylene raw material with a wide range from 63mm to 800mm and various pressure levels from PN6 to PN16.

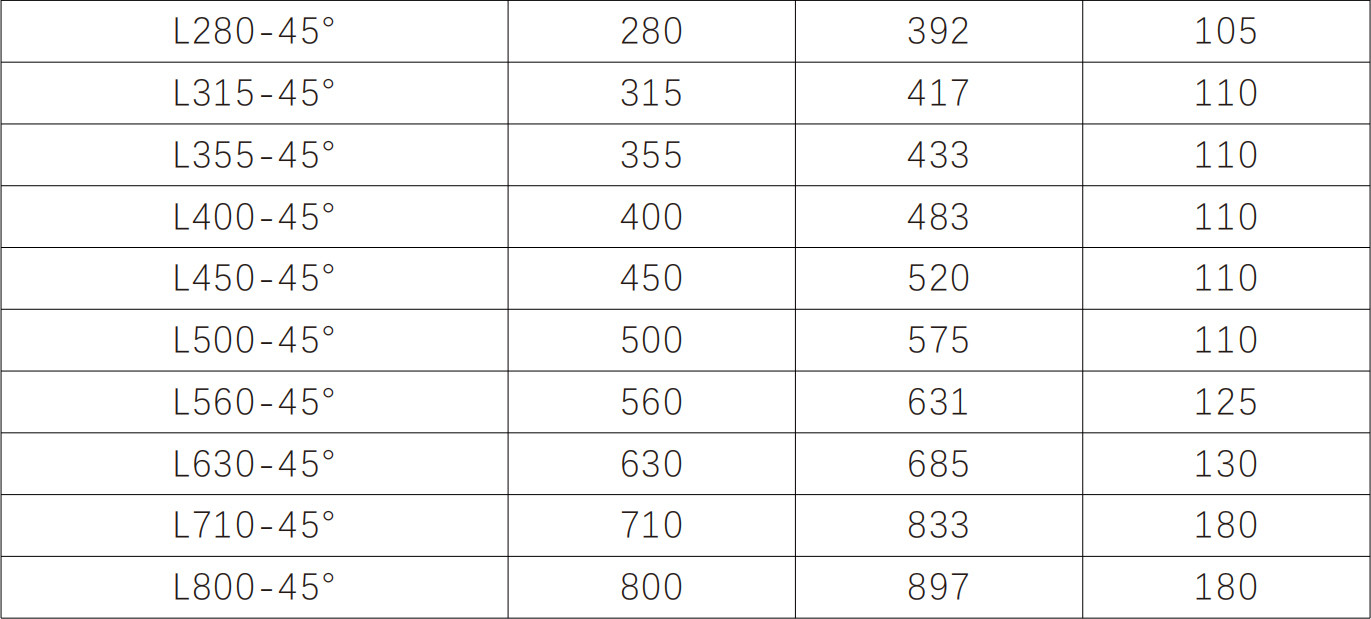

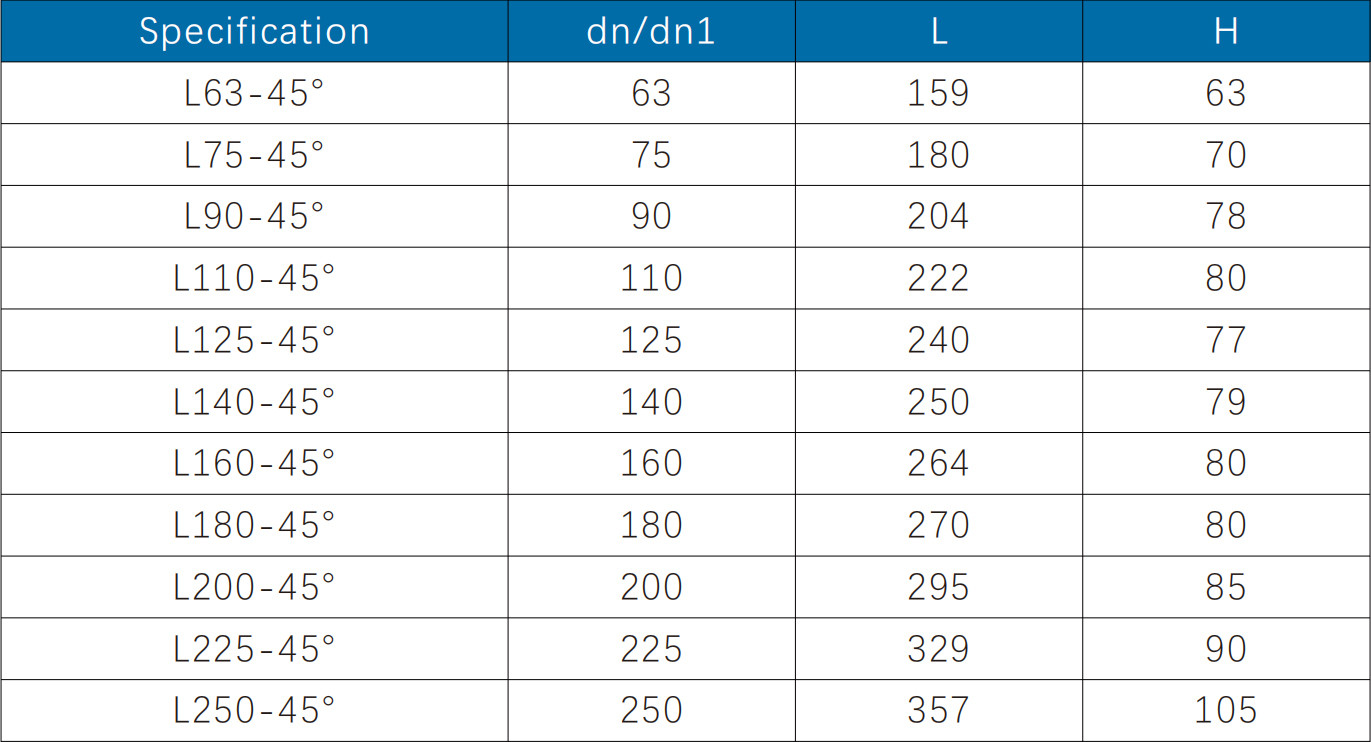

L63-800
L63-800
Detailed
45° Elbow – Butt Fusion Fitting
FusingX Butt Fusion 45° Elbow
Product Overview

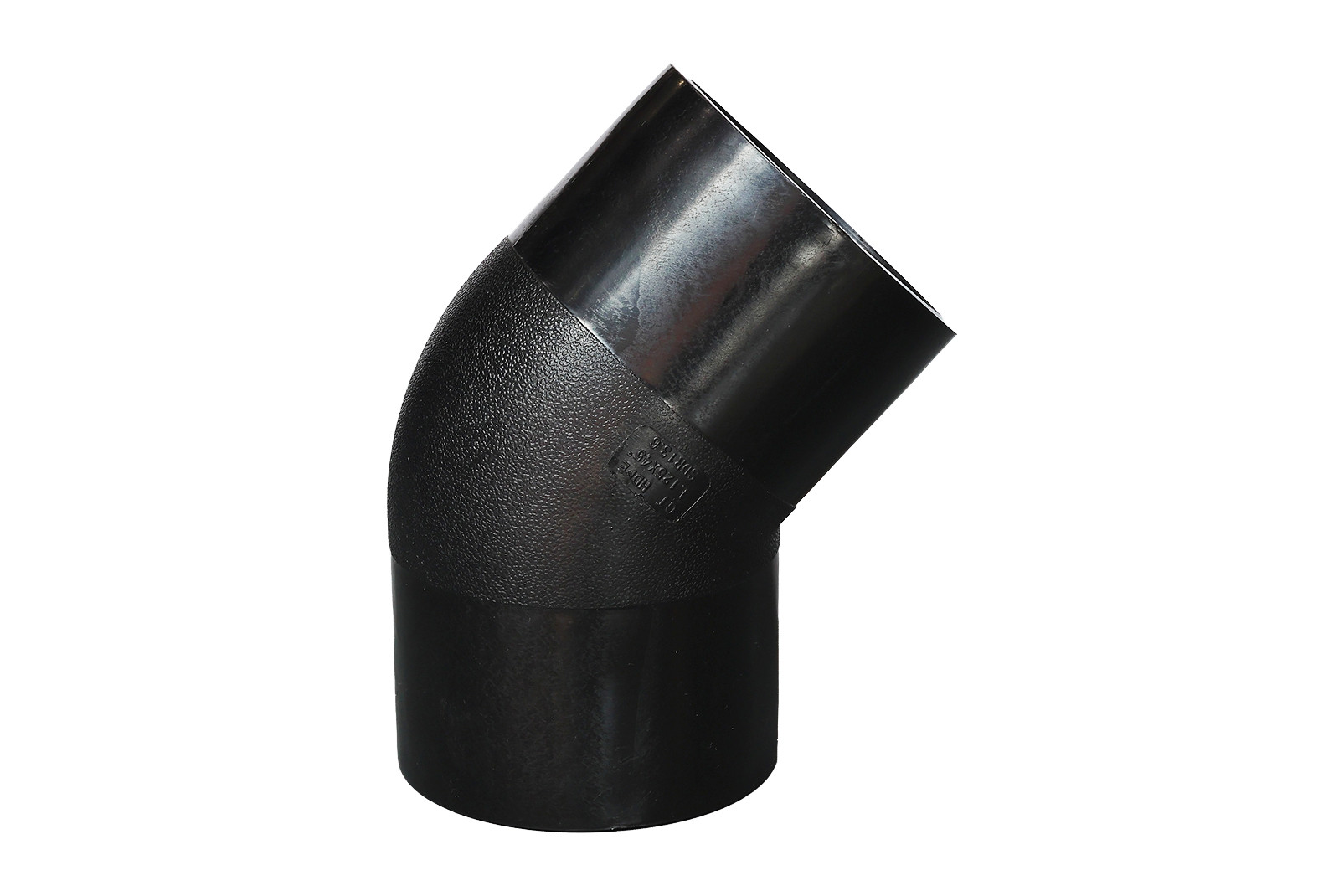

Butt Fusion 45° Elbow
· Material: PE100
· Pressure rating: PN16
· Size range: DN63–DN800
· Connection method: Butt fusion
· Application: PE pipeline systems

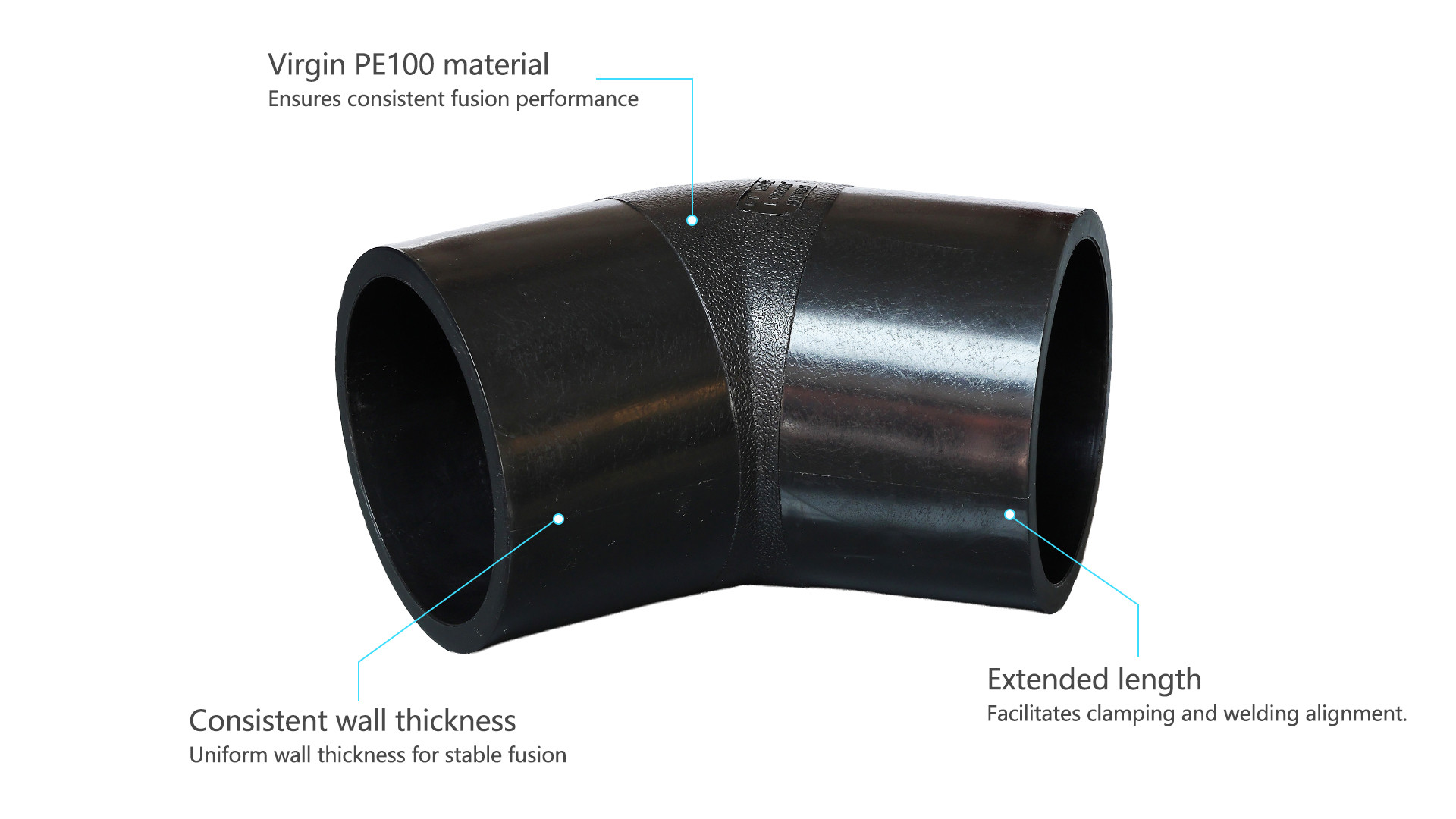

Butt Fusion Structure & Welding Surfaces
· Flat and uniform fusion faces ensure consistent heat transfer
· Accurate elbow geometry helps maintain alignment during fusion
· Stable wall thickness reduces welding deviation

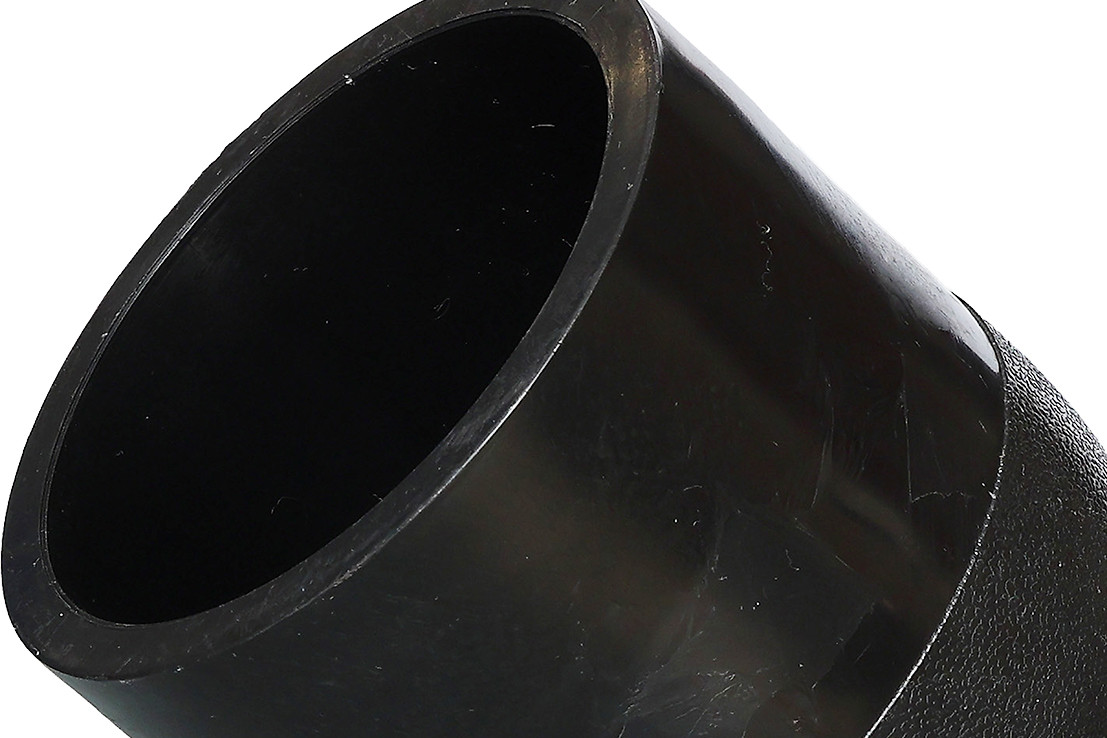

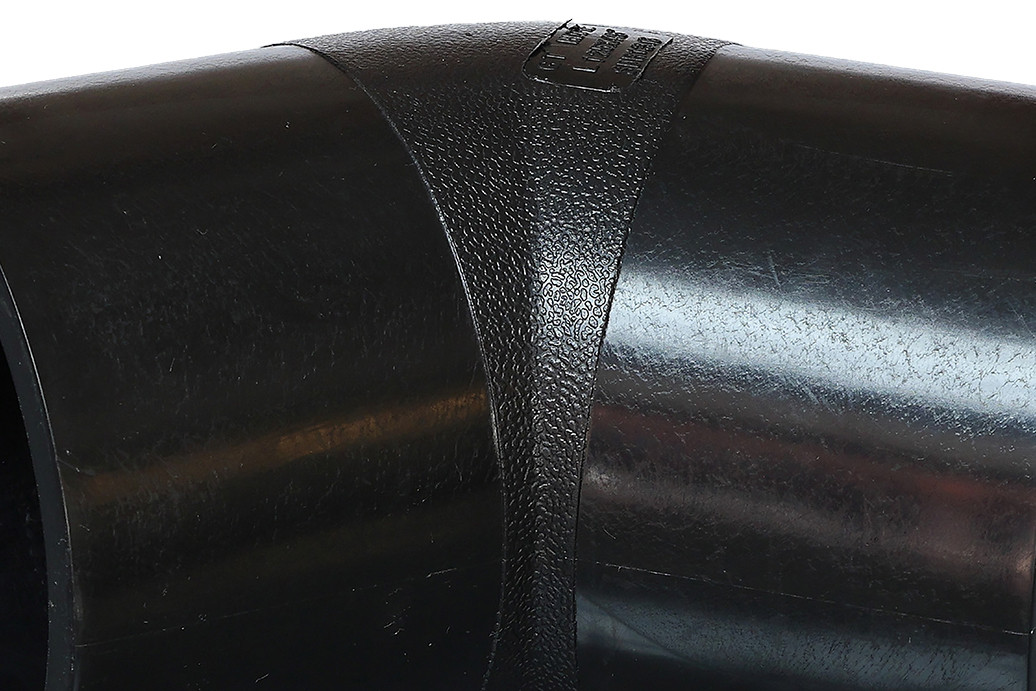

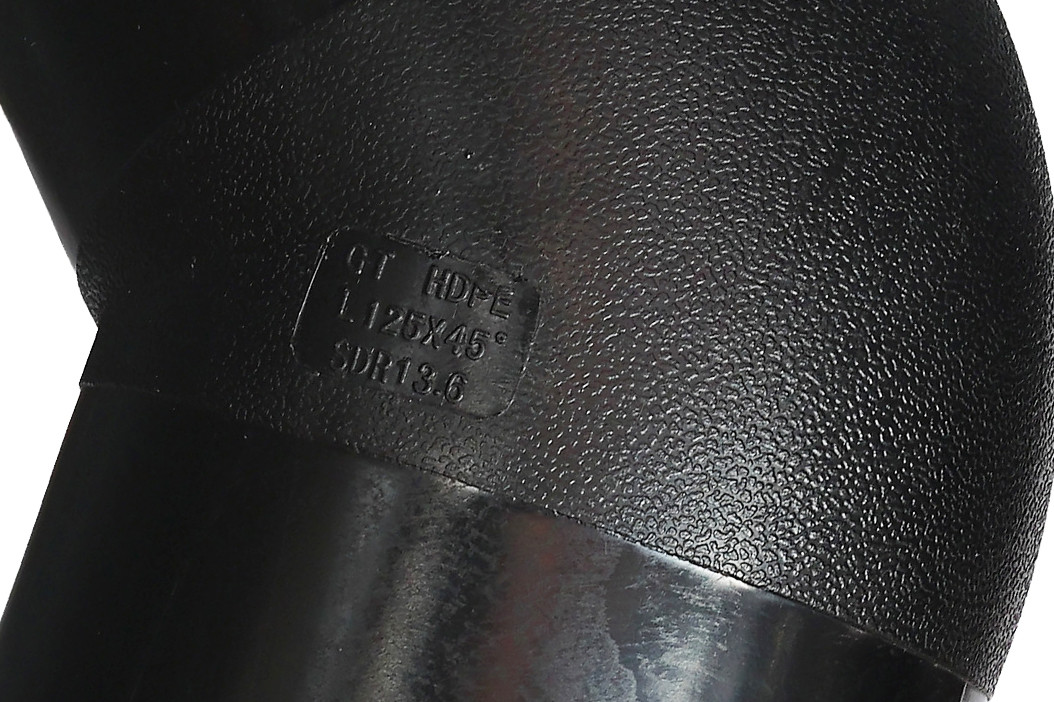

Detail views of body and welding faces
Selection Notes
· Select size according to pipe outside diameter (DN63–DN800)
· Confirm pressure class requirement (PN16)
· Ensure compatibility with butt fusion welding machines and parameters
FX Series – System View
FusingX FX Series – System View
FX series focuses on professional pipeline fusion systems.
· Electrofusion fittings
· Electrofusion control units
· Butt fusion machines
