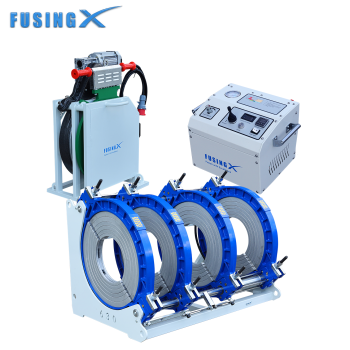

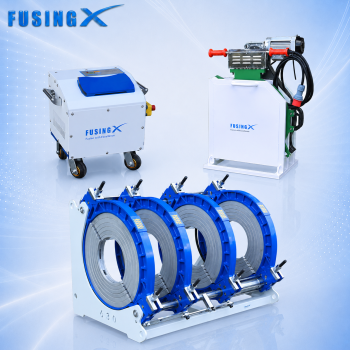

High Level Hydraulic Butt Fusion Welding Machine Semi Automatic Butt Welding Machine FusingX 315/630
- group name
- FX-Butt Fusion Welding Machine
- Min Order
- 1 piece
- brand name
- FusingX
- model
- FX630
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Fri, 05 Dec 2025 23:14:14 GMT
Paramtents
OEM&ODM Support
Welding Range 315 mm – 630 mm (with clamp inserts)
Frame Steel welded, reinforced structure
Hydraulic Unit Integrated hydraulic & electrical system
Heating Plate Cast aluminum, PEFT coating, ±7ºC control
Facer Gear transmission, HSS blades, copper motor
Power Supply Aviation plug, heavy-duty power cord
Portability Handles & wheels, compact enclosure
Packging & Delivery
-
Min Order1 piece
Briefing
FOR PROFESIONALS
Innovative HPU: Smart Pressure controlRobust Frame: for heavy-duty jobsWide-size clamps: for efficient working
Innovative HPU: Smart Pressure controlRobust Frame: for heavy-duty jobsWide-size clamps: for efficient working
Detailed

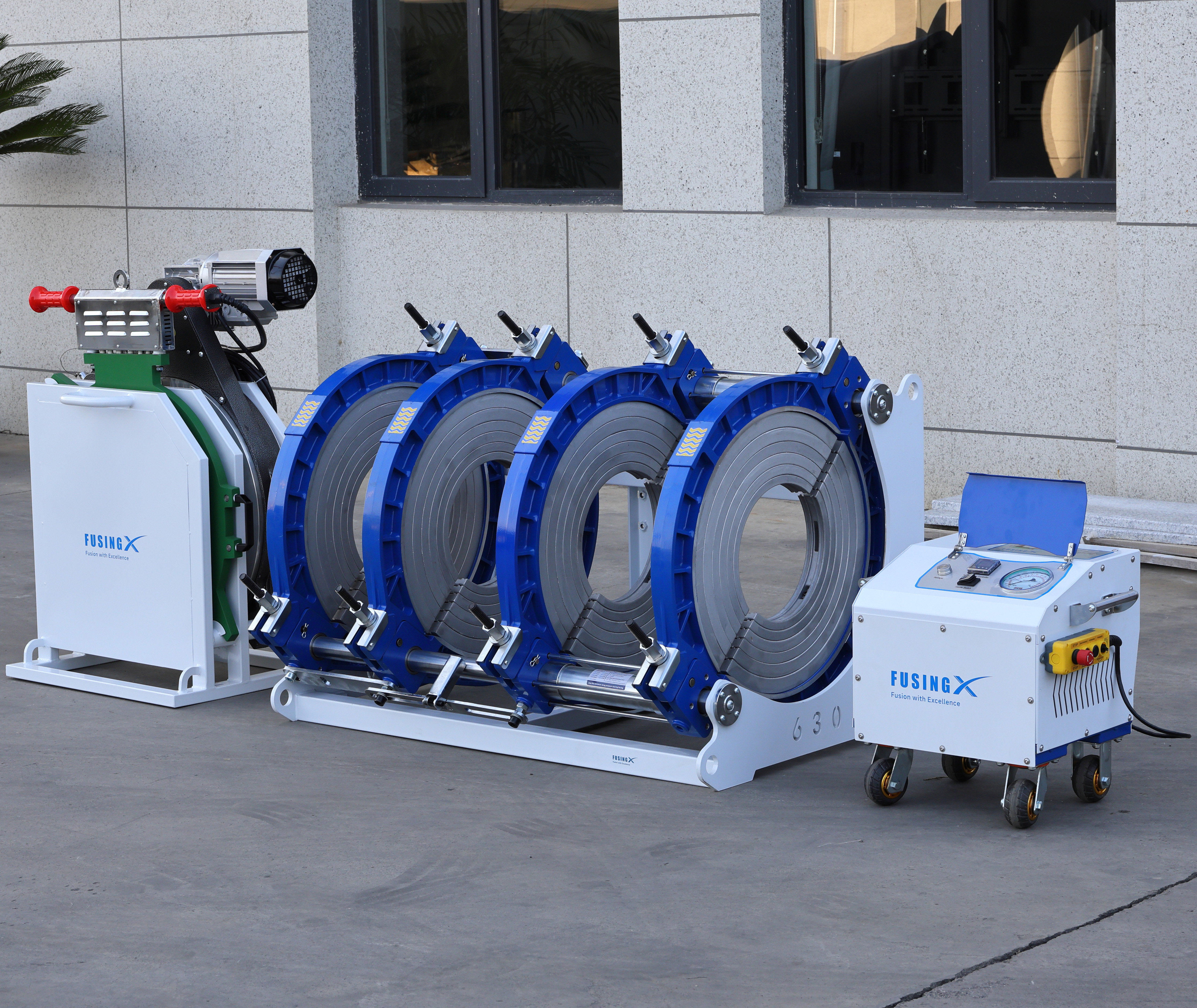

FX630 Butt Fusion Machine — Fusion with Excellence
（Precision · Intelligence · Excellence）
Key Highlights
· Robust Frame: Heavy-duty steel welded design for stable performance
· Innovative HPU: Smart hydraulic system with fast switching & easy operation
· Precision Heating Plate: Stable temperature control with anti-stick coating
· Durable Facer: Gear-driven with powerful motor and HSS double-edge blades
· Single-Size Clamp Inserts: Improve efficiency and accuracy across pipe sizes
Product Overview
The FX630 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 315mm to 630mm. With a reinforced frame, advanced hydraulic control, and precise heating technology, it offers contractors a reliable solution for municipal, industrial, and energy projects.
| Model No. | FX630 | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | Hydraulic Station | Enclosed |
| Warranty | 1 Year | Package Quantity | 2PCS |
OEM&ODM | Support | Shipping | by Sea or by Air |
Certificate | IS09001,CE | MOQ | No Limit |
After Service | Online | Material | Aluminium,Steel |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | FUSINGX | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000 Pieces/Year |
PARAMETER
| Model | FX630 |
| Suitable materials | HDPE,PE,PP, PB,PVDF |
| Range | 315-355-400-450-500-560-630mm |
Rated Voltage | AC 380V, 50Hz, 3PH |
Rated Power | 10.1kw |
Heating plate | 7.5kw |
Trimmer | 1.5kw |
Hydraulic Unit | 1.1kw |
Max.Temperature of heating plate | 270ºC |
Pressure gauge | 0-10Mpa |
Certificate | ISO/CE/VOC/Calibration |
| Warranty | 18 Months |
PRODUCT DETAILS MAP

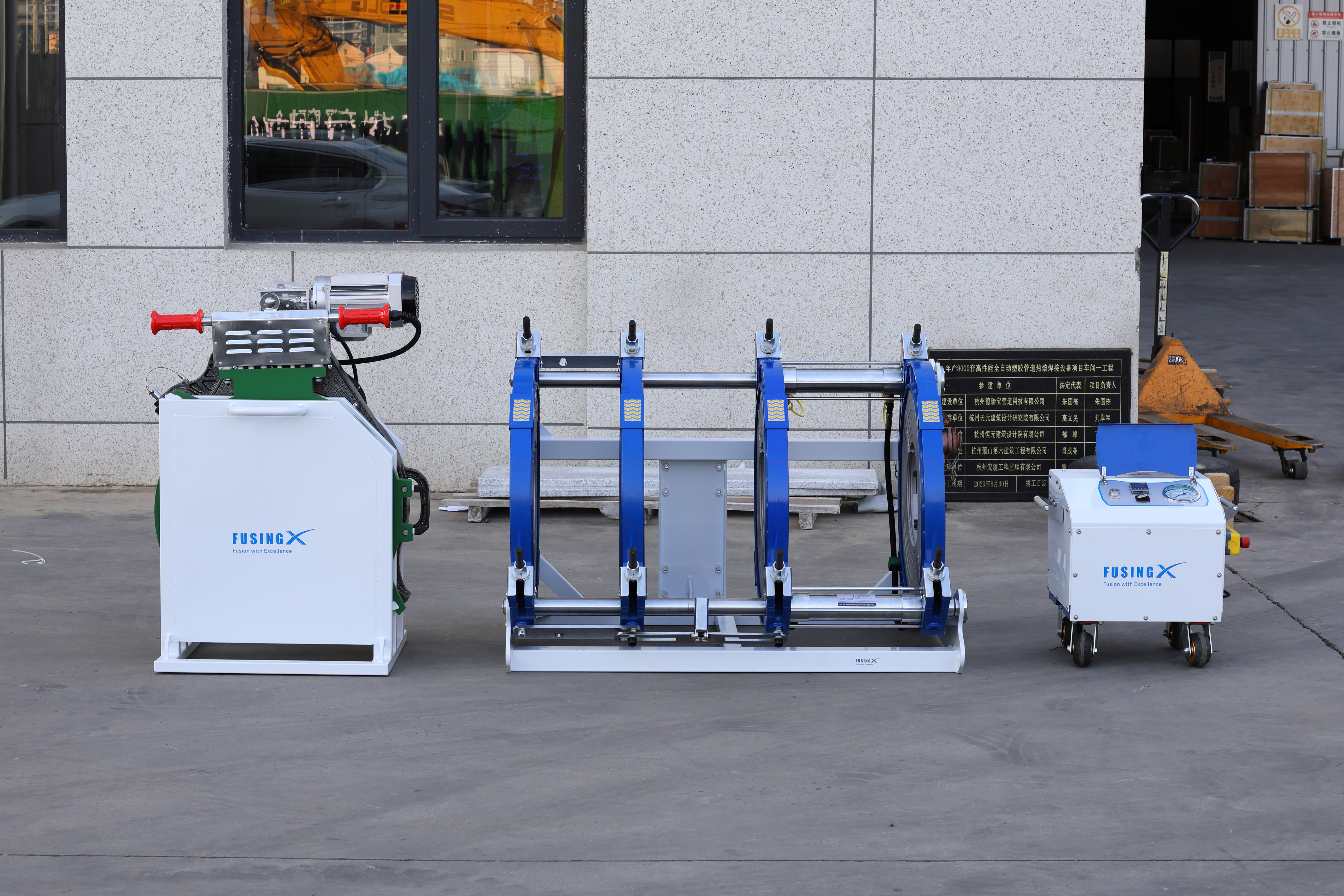

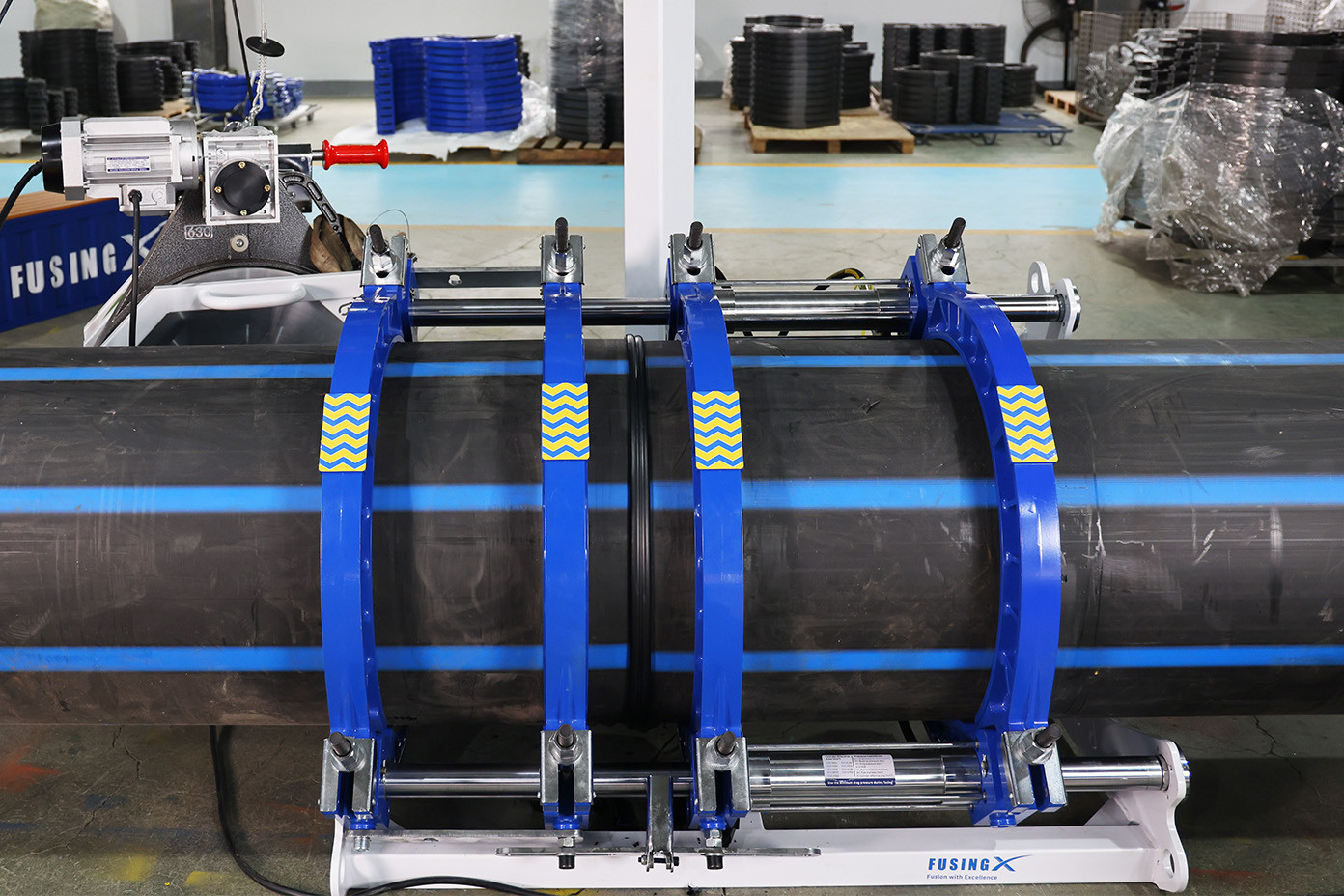

Frame(Carriage)
● Complete steel welded design, with complex reinforced structure, heavy-duty
● Clamping part, inner fine-machined
● Standard equipped with carrying handles and wheels, for easy transportation
● Qualified hydraulic cylinder with quick couplings, for easy installation

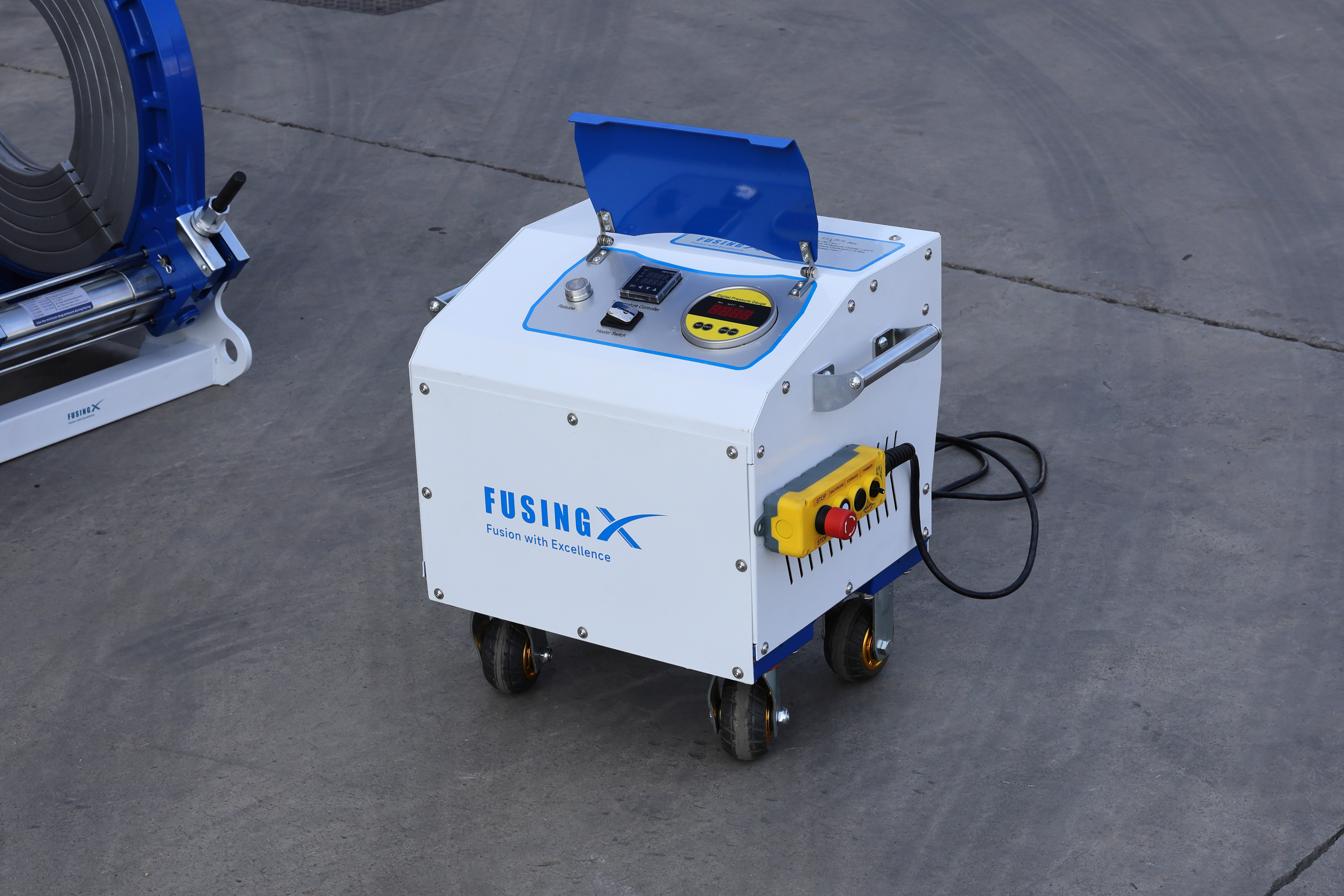

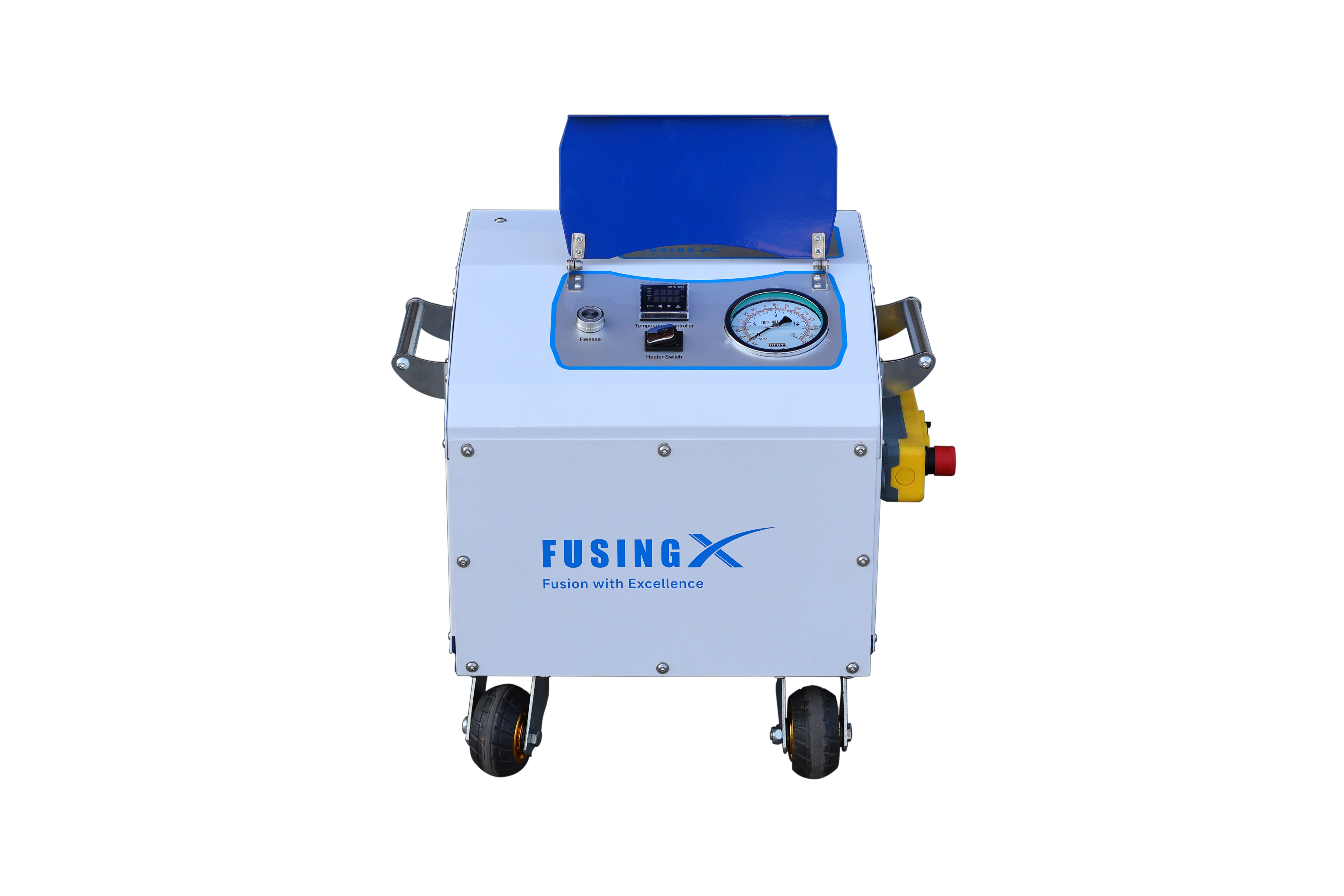

DynaFX™ HPU
● Integrated hydraulic and electrical control, for easy operation access
● Special designed hydraulic system, smart pressure control for pipe facing
● Compact and Enclosure design, shielding splash and dirt
● Featuring forward movement at 1X speed and reverse at 1.3X speed. Improves efficiency and reduces switching time.
Heating plate
● Cast aluminum body with built-in heating elements
● Anti-stick PEFT coating from Daikin
● Excellent teperature diavation control, less than 7°C
● Qualified aviation plug and heavy-duty power cord ensure operation safety

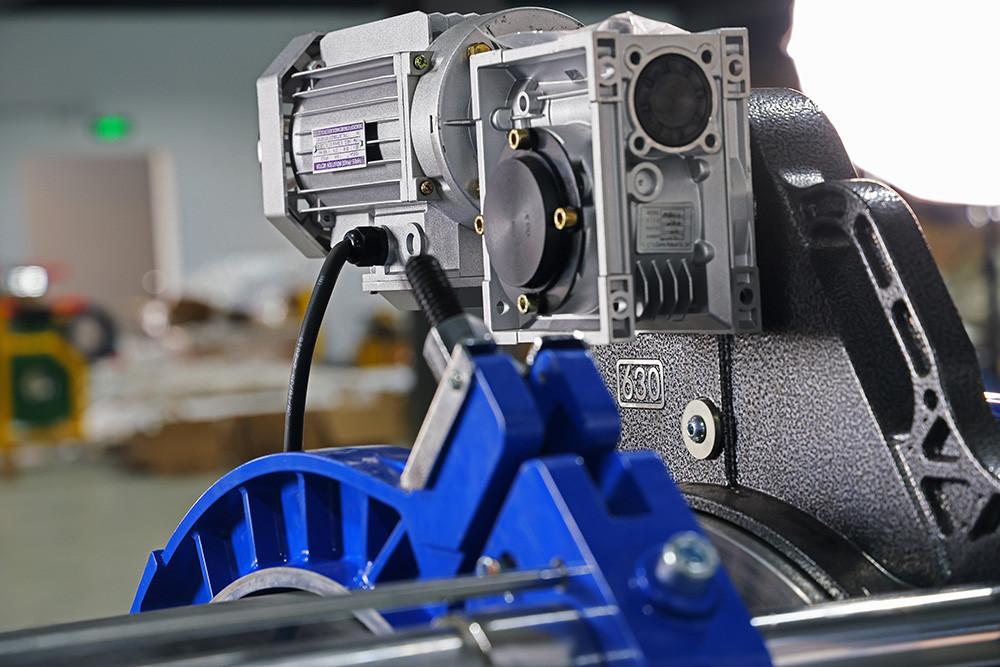

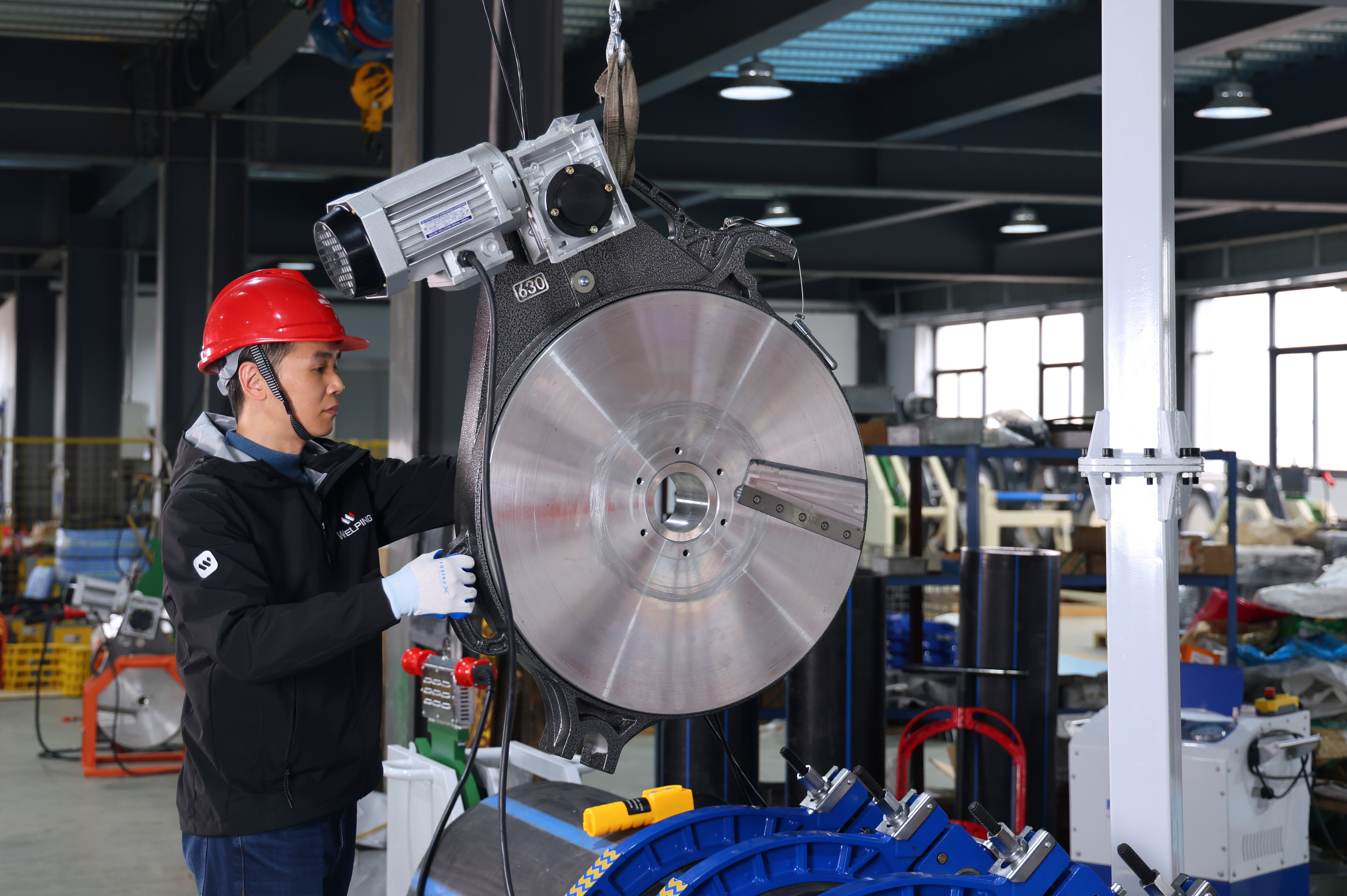

Facer (Milling Cutter)
● Full gear transmission structure, for steady and long-life performance
● Powerful copper-wiring motor
● Durable, double edges HSS blades

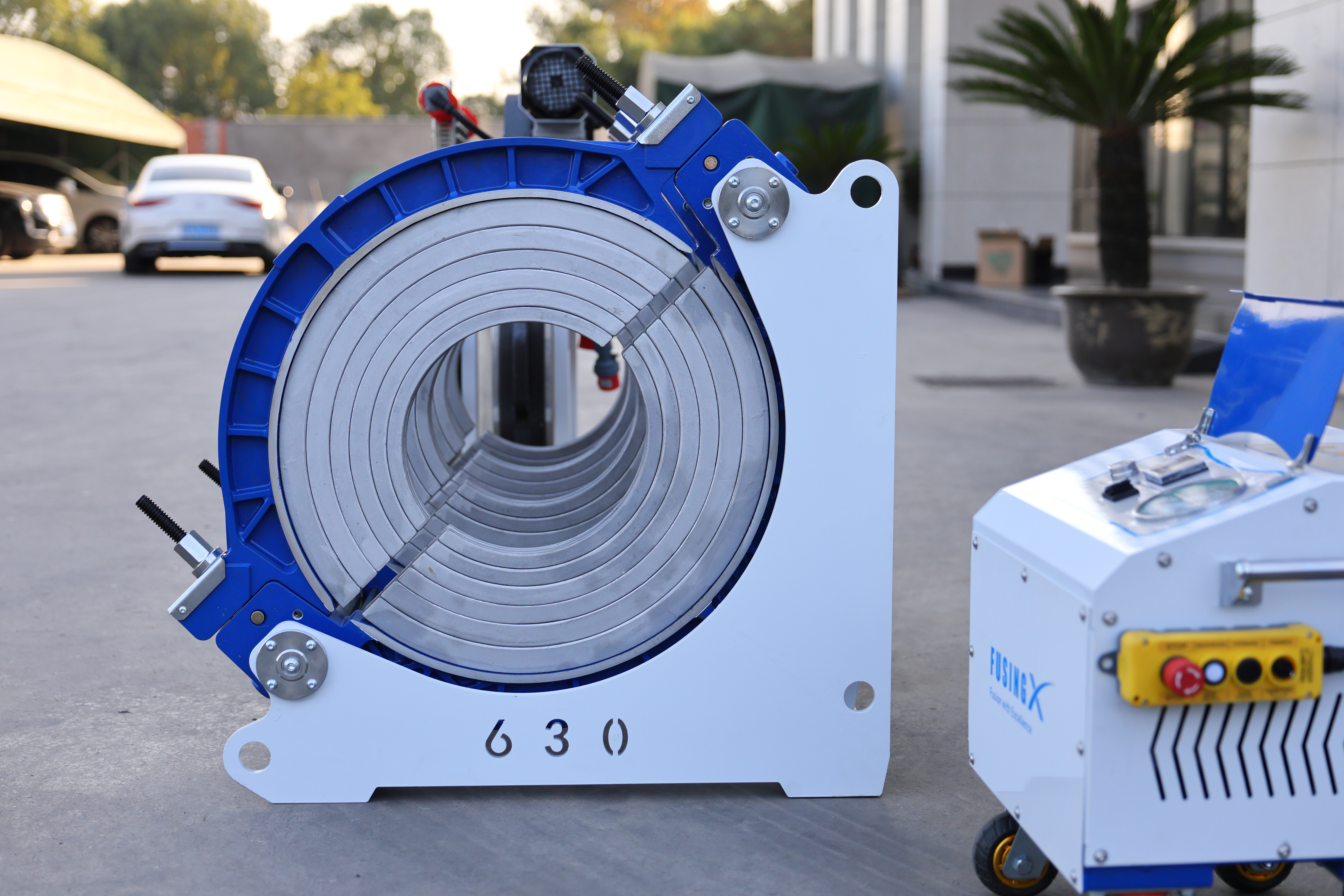

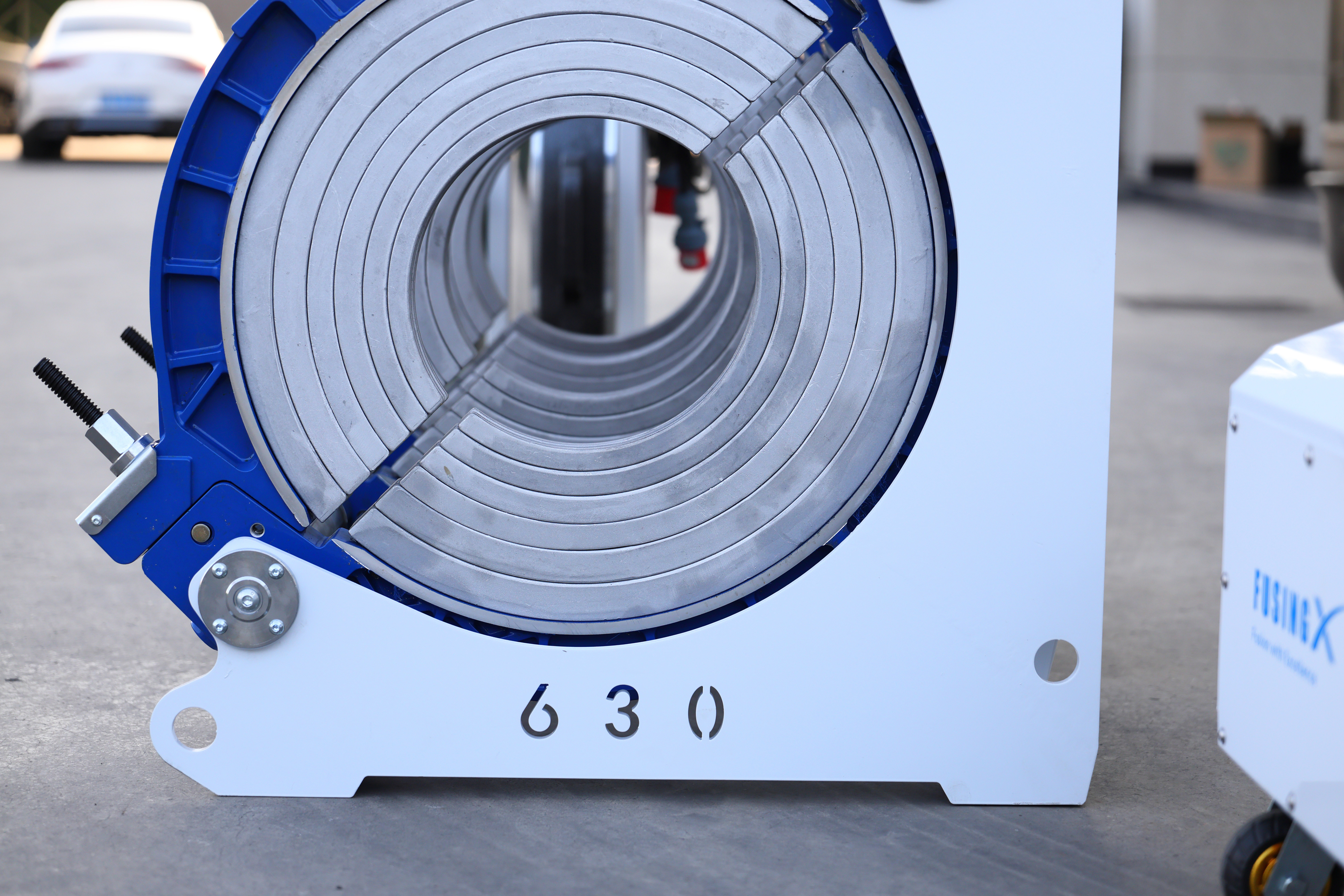

Wide-range reducers
● Cast aluminum clamp inserts
● From 630 mm down to 315 mm, only 3 sets of clamp inserts are required, and some sizes only require 2 sets clamp inserts
● Significantly improves work efficiency as well as clamping accuracy
Tool holder
● Complete heating plate covers for better protection and heating conservation
● Wider and longer handles for better mobility
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
